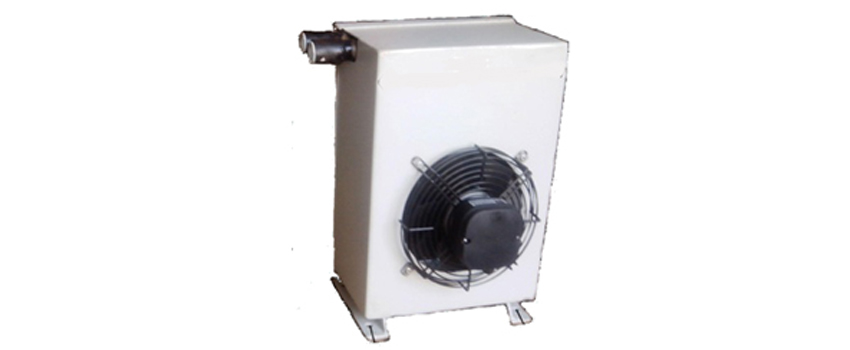

Air blast oil cooler
These units are recommended where raw water availability is scarce as well as not stationary application. Incorporated with latest.
Finning techniques, fitted with energy efficient imported cooling fans.
Heat dissipation range:
1500Kcal/hr (1.7 kw) to 90000 Kcal (105 kw).
Applications:
- Hydraulic oil cooling
- Lube oil cooling
- Quench oil cooling
- Furnace oil cooling
- Process water cooling
Airblast oil cooler technical spec |
|
|---|---|
| Oil grade | Enclo 68/EQV |
| Ambient temperature | 40 degree celsius max. |
| Oil stabilization temp | 55 degree celsius max 45 degree celsius opt |
| Construction | Copper tube with Al. fins |
| Fan motor | 230V/415V/50 Hz |
| Oil flow | Min. as specified |
[ Note* : Download and fill the product questionnaire based on your specifications and upload it in the request quote form]
